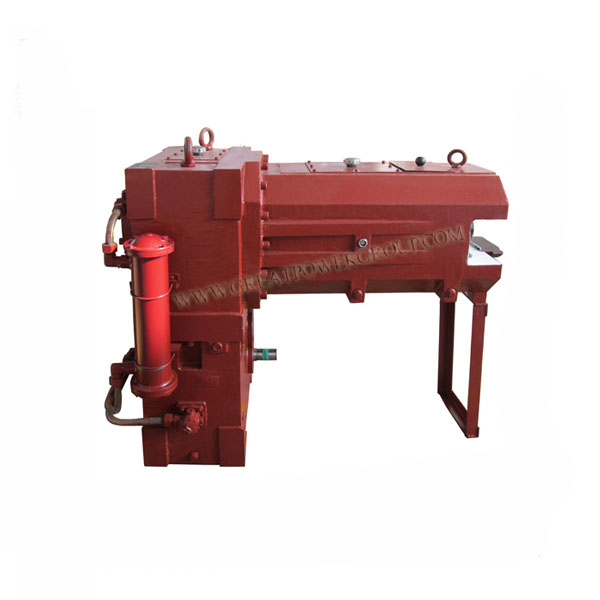

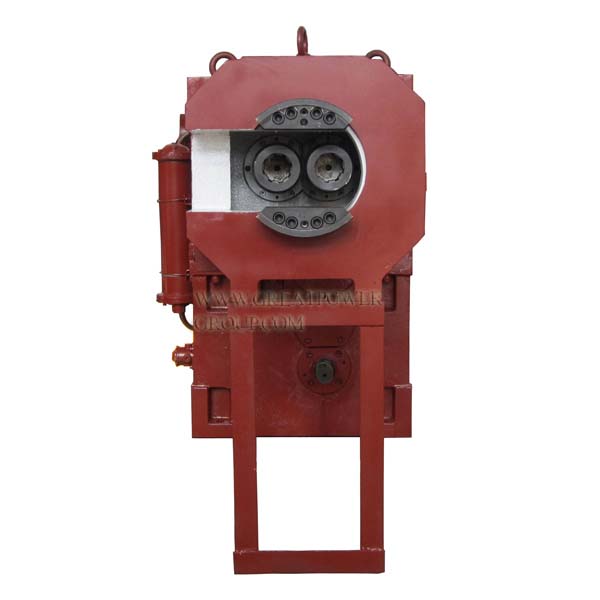

SZL Urukurikirane rwa Twin Screw Gear Reducer

Ibisobanuro bigufi:

SZL ikurikirana ya conical twin screw gear kugabanya nigice cyihariye cyo gutwara cyahujwe na conical twin - screw rod extruder. Igizwe n'ibice bibiri, aribyo kugabanya agasanduku no kugabura agasanduku. Nyuma yo kugabanya umuvuduko no kongera torque ya moteri, isohora imbaraga zitera kubisanduku.

Ibicuruzwa birambuye

Ibicuruzwa

Amakuru Yibanze

Imbaraga zinjiza 18.5KW ~ 110KW
Kuramo Dia 45/90 ~ 92 / 188mm
Ibisohoka bisohoka bya shaft imwe 1972N · m ~ 13130N · m
Kwinjiza umuvuduko 1500RPM
Umuvuduko wo gusohoka Ukurikije igipimo
Ibikoresho by'ibikoresho 20CrMnTi ibyuma bike bya karubone
Ibikoresho byo guturamo Shira icyuma
Gutunganya ibikoresho Gusya CNC
Ikirangantego C&U, NXZ‌, ZHJ, ZWZ, LYC, HRB, NSK, FAG, nibindi
Ikirango cya kashe ya peteroli FAG, NAK, nibindi
Ubuso bukomeye bwibikoresho HRC54 ~ 62
Koresha neza Icyiciro cya 6
Kuvura ubushyuhe Carburizing, Kuzimya
Uburyo bwo gusohoka Gusohora shaft ibisohoka
Uburyo bwinjiza Igiti gikomeye

Ibisobanuro ku bicuruzwa
SZL ikurikirana ya conical twin screw gear kugabanya nigice cyihariye cyo gutwara cyahujwe na conical twin - screw rod extruder. Igizwe n'ibice bibiri, aribyo kugabanya agasanduku no kugabura agasanduku. Nyuma yo kugabanya umuvuduko no kongera torque ya moteri, isohora imbaraga zitera kumasanduku yo kugabura, hanyuma igatwara ibice bibiri bisohoka (inguni yashyizwemo ni kimwe niy'impanga - inkoni ya screw) ikoresheje ibyuma bito bito bya conical spiral ifite moteri yo gutwara 1: 1, bityo kugirango itware imigozi ya screw kugirango izenguruke hanze hamwe nicyerekezo gitandukanye.

Ibiranga ibicuruzwa
1.Hariho garebox ya silindrike irimo, amakuru nuburyo byateguwe neza na mudasobwa.
2.Ibikoresho bikozwe mu - Ifite ubukana bwinshi hejuru yinyo, ubushobozi bunini bwo gutwara, urusaku ruto, gukora neza no gukora neza.
3.Ibikoresho byo mu isanduku yo gukwirakwiza ni nodular grafite yo guta ibyuma kandi ibyuma bifite - amenyo yubutaka yo hejuru, aho inzoka - itangwa imiyoboro ikonje ikonje.
4.Umuvuduko ntarengwa winjiza wa garebox mubisanzwe ntabwo urenze 1500 rpm.
5.Ubushyuhe mubikorwa byakazi ni - 10 ℃ - 45 ℃ .Iyo ubushyuhe buri munsi ya 0 ℃, amavuta yo kwisiga agomba gushyuha kugeza kuri + 10 ℃ mbere yo gutangira.

Ikigereranyo cya tekiniki

No Andika Dia Dia (mm) Imbaraga zinjiza (KW) Ikigereranyo cyo gutwara Kwinjiza Umuvuduko (RPM) Umuvuduko wo gusohoka (RPM)
1 SZL45 45/90 18.5 33.4 1500 44.9
2 SZL50 50/105 22 40.0 1500 37.5
3 SZL55 55/110 30 39.5 1500 38.0
4 SZL65 65/132 37 38.6 1500 38.9
5 SZL80 80/156 55 38.3 1500 39.2
6 SZL92 92/188 110 37.3 1500 40.2

Gusaba
SZL ikurikirana ya conical twin screw ibikoresho bigabanya gukoreshwa cyane muri plastiki conical twin - screw extruders.

Ibibazo

Ikibazo: Uburyo bwo guhitamo aimpangagarebox nakugabanya umuvuduko?

Igisubizo: Urashobora kwifashisha kataloge yacu kugirango uhitemo ibicuruzwa cyangwa turashobora kandi gusaba icyitegererezo nibisobanuro nyuma yo gutanga ingufu za moteri zisabwa, umuvuduko wo gusohoka n'umuvuduko, nibindi.

Ikibazo: Nigute dushobora kwemezaibicuruzwaubuziranenge?
Igisubizo: Dufite uburyo bukomeye bwo kugenzura umusaruro no kugerageza buri gice mbere yo kubyara.Kugabanya ibikoresho byacu bigabanya kandi bizakora ikizamini gikora nyuma yo kwishyiriraho, kandi gitange raporo yikizamini. Gupakira kwacu biri mubiti byumwihariko byoherezwa hanze kugirango tumenye neza ubwikorezi.
Q: Kuki nahitamo sosiyete yawe?
Igisubizo: a) Turi umwe mubambere bayobora kandi bohereza ibicuruzwa hanze.
b) Isosiyete yacu yakoze ibicuruzwa byimyaka hafi 20 hamwe nuburambe bukomeyen'ikoranabuhanga rigezweho.
c) Turashobora gutanga serivise nziza kandi nziza hamwe nibiciro byapiganwa kubicuruzwa.

Ikibazo: Nikiyawe MOQ naingingo yaubwishyu?

Igisubizo: MOQ nigice kimwe.T / T na L / C biremewe, kandi andi magambo arashobora no kumvikana.

Ikibazo: Urashobora gutanga ibyangombwa bijyanye ku bicuruzwa?

A:Nibyo, turashobora gutanga ibyangombwa byinshi harimo nigitabo gikora, raporo yikizamini, raporo yubugenzuzi bwiza, ubwishingizi bwo kohereza, icyemezo cyinkomoko, urutonde rwabapakira, inyemezabuguzi yubucuruzi, fagitire yubucuruzi, nibindi.
